Apollo-Stereo 6771W

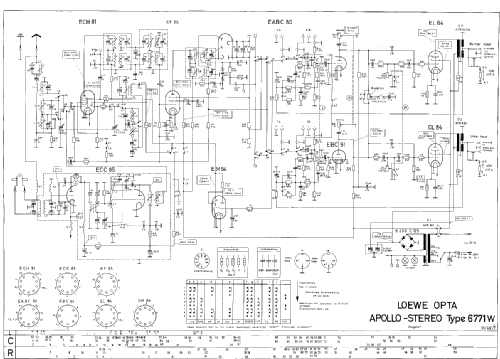

Apollo-Stereo 6771W; Loewe-Opta; (ID = 14851) Radio
Apollo-Stereo 6771W; Loewe-Opta; (ID = 1832883) Radio Apollo-Stereo 6771W; Loewe-Opta; (ID = 388871) Radio
Apollo-Stereo 6771W; Loewe-Opta; (ID = 388872) Radio Apollo-Stereo 6771W; Loewe-Opta; (ID = 388873) Radio
Apollo-Stereo 6771W; Loewe-Opta; (ID = 27439) Radio Apollo-Stereo 6771W; Loewe-Opta; (ID = 343429) Radio
Apollo-Stereo 6771W; Loewe-Opta; (ID = 1832882) Radio Apollo-Stereo 6771W; Loewe-Opta; (ID = 1832884) Radio
Apollo-Stereo 6771W; Loewe-Opta; (ID = 1832885) Radio Apollo-Stereo 6771W; Loewe-Opta; (ID = 1832886) Radio
Use red slider bar for more.
Apollo-Stereo 6771W; Loewe-Opta; (ID = 1832883) Radio
Loewe-Opta;: Apollo-Stereo 6771W [Radio] ID = 1832883 1400x1219
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apollo-Stereo 6771W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF85 EABC80 EM84 EBC91 EL84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Apollo-Stereo 6771W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 370 x 230 mm / 24.4 x 14.6 x 9.1 inch
Notes

Stereo-NF-Verstärker mit zwei Endstufen je 4 W, Parallelbetrieb bei Mono.

Eine Abgleichanleitung, die für dieses Modell anwendbar ist finden Sie bei dem Loewe-Opta Modell Domino-Stereo 5821W.

Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 399.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
