Arosa P 33133

Arosa P 33133; Loewe-Opta; (ID = 230456) Television

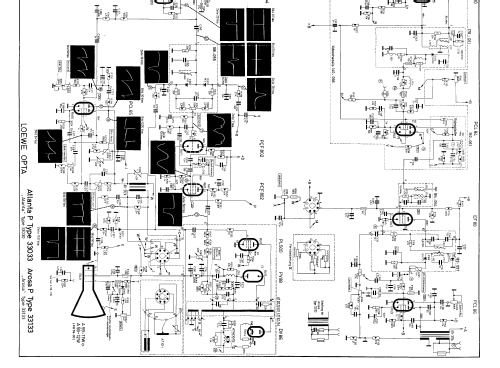

Arosa P 33133; Loewe-Opta; (ID = 230457) Television

Arosa P 33133; Loewe-Opta; (ID = 230433) Television

Arosa P 33133; Loewe-Opta; (ID = 230431) Television

Arosa P 33133; Loewe-Opta; (ID = 230453) Television

Arosa P 33133; Loewe-Opta; (ID = 230454) Television

Arosa P 33133; Loewe-Opta; (ID = 230455) Television
Use red slider bar for more.
Arosa P 33133; Loewe-Opta; (ID = 230456) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PC88 PC86 PCC88 PCF86 EF183 EF80 EF80 PCL84 EF80 PCL86 ECH84 PCF802 PL500 PY88 DY86 PCL85 A59-11W
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Arosa P 33133 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes

Zeilenfrei-Schaltung. VHF und UHF Bereich.

ACHTUNG: Vorsicht bei der Reparatur, ein Pol des Lichtnetzes ist mit dem Geräte-Chassis verbunden! Im geöffneten Zustand darf das Gerät nur über einen Trenntrafo betrieben werden.

Source of data -- Schematic

Model page created by Jörg Kirchhof. See "Data change" for further contributors.
