Atlas 674

Atlas 674; Loewe-Opta; (ID = 584420) Television

Atlas 674; Loewe-Opta; (ID = 584421) Television

Atlas 674; Loewe-Opta; (ID = 584422) Television

Atlas 674; Loewe-Opta; (ID = 584423) Television

Atlas 674; Loewe-Opta; (ID = 584424) Television

Atlas 674; Loewe-Opta; (ID = 584425) Television

Atlas 674; Loewe-Opta; (ID = 584426) Television

Atlas 674; Loewe-Opta; (ID = 584427) Television

Atlas 674; Loewe-Opta; (ID = 584428) Television

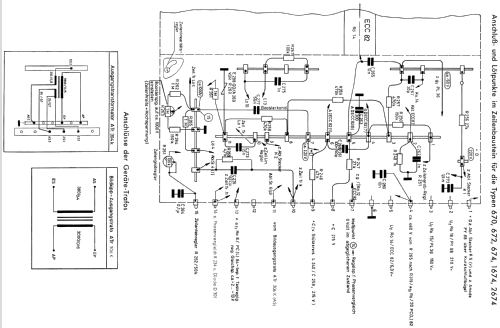

Atlas 674; Loewe-Opta; (ID = 584429) Television

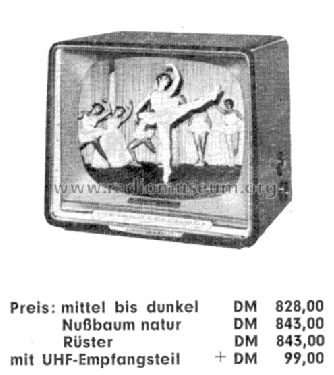

Atlas 674; Loewe-Opta; (ID = 813058) Television Atlas 674; Loewe-Opta; (ID = 606992) Television
Use red slider bar for more.
Atlas 674; Loewe-Opta; (ID = 813058) Television
Loewe-Opta;: Atlas 674 [Television] ID = 813058 391x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlas 674, Loewe-(Opta); Deutschland:
Handbuch für Fernsehen 1960-61 Walter Kluxen Hamburg

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1960/1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: PCC88 PCF80 EF183 EF80 EF80 EF80 PCL84 ECH81 ECH81 PCL86 PCL82 ECC82 PL36 PY88 DY86 AW53-88
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Atlas 674 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 510 x 420 mm / 23.6 x 20.1 x 16.5 inch
Notes VHF; UHF gegen Mehrpreis (92,- DM), dann 18 Röhren. UHF-Tuner NSF Type 114 oder Valvo AT6321 nachrüstbar.
Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
Price in first year of sale 828.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
