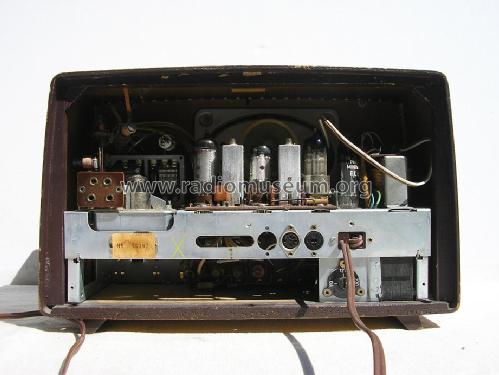

Bella 32011W

Bella 32011W; Loewe-Opta; (ID = 36459) Radio
Bella 32011W; Loewe-Opta; (ID = 152660) Radio Bella 32011W; Loewe-Opta; (ID = 36575) Radio
Bella 32011W; Loewe-Opta; (ID = 152661) Radio Bella 32011W; Loewe-Opta; (ID = 63542) Radio
Bella 32011W; Loewe-Opta; (ID = 581095) Radio Bella 32011W; Loewe-Opta; (ID = 581096) Radio
Bella 32011W; Loewe-Opta; (ID = 581097) Radio Bella 32011W; Loewe-Opta; (ID = 693597) Radio
Bella 32011W; Loewe-Opta; (ID = 1260386) Radio Bella 32011W; Loewe-Opta; (ID = 1260387) Radio
Use red slider bar for more.
Bella 32011W; Loewe-Opta; (ID = 152660) Radio
Loewe-Opta;: Bella 32011W [Radio] ID = 152660 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella 32011W, Loewe-(Opta); Deutschland:
S.-Nr. 6911 Type 32011

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Bella 32011W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 225 x 170 mm / 14.2 x 8.9 x 6.7 inch
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 249.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1310 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Loewe-Opta;: Bella 32011W
Threads: 1 | Posts: 1
Hits: 2078     Replies: 0
loewe-opta: 32011W; Bella
K. M.
25.Dec.03
  1 Fehlender UKW-Empfang:
Widerstand R7 2,2 k für Anodenspeisung ECC85 war hochohmig. Durch Erneuerung wieder Empfang!

Loewe-Opta;: Bella 32011W
