Bella 700GW

Bella 700GW; Loewe-Opta; (ID = 906939) Radio Bella 700GW; Loewe-Opta; (ID = 906940) Radio
Bella 700GW; Loewe-Opta; (ID = 1341956) Radio Bella 700GW; Loewe-Opta; (ID = 1341957) Radio
Use red slider bar for more.

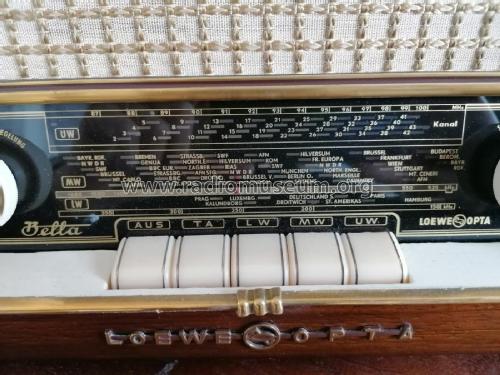

Bella 700GW; Loewe-Opta; (ID = 906939) Radio
Loewe-Opta;: Bella 700GW [Radio] ID = 906939 897x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella 700GW, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCC85 UCH81 UF89 UABC80 UL84
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Bella 700GW - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 365 x 250 x 205 mm / 14.4 x 9.8 x 8.1 inch
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Price in first year of sale 209.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
