Bella junior 82010

Bella junior 82010; Loewe-Opta; (ID = 334620) Radio

Bella junior 82010; Loewe-Opta; (ID = 334621) Radio

Bella junior 82010; Loewe-Opta; (ID = 334623) Radio

Bella junior 82010; Loewe-Opta; (ID = 334624) Radio

Bella junior 82010; Loewe-Opta; (ID = 334626) Radio
Bella junior 82010; Loewe-Opta; (ID = 299477) Radio Bella junior 82010; Loewe-Opta; (ID = 234047) Radio
Bella junior 82010; Loewe-Opta; (ID = 234046) Radio Bella junior 82010; Loewe-Opta; (ID = 48573) Radio
Bella junior 82010; Loewe-Opta; (ID = 234045) Radio Bella junior 82010; Loewe-Opta; (ID = 603212) Radio
Bella junior 82010; Loewe-Opta; (ID = 1037475) Radio Bella junior 82010; Loewe-Opta; (ID = 1923413) Radio
Use red slider bar for more.

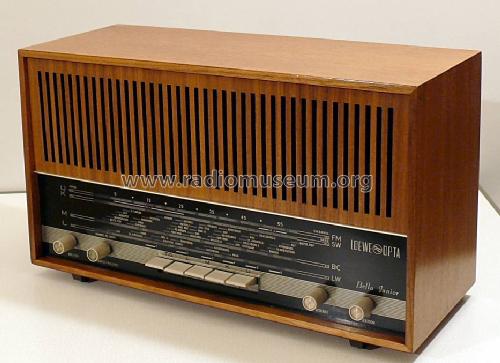

Bella junior 82010; Loewe-Opta; (ID = 299477) Radio
Loewe-Opta;: Bella junior 82010 [Radio] ID = 299477 933x678
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella junior 82010, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EAF801 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Bella junior 82010 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 380 x 210 x 150 mm / 15 x 8.3 x 5.9 inch
Notes Dioden: 2× AA113.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1582 models, 1307 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
