• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111992

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EL84 EM80 EBF89 EF83

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15.5 cm = 6.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bella-Luxus 179W - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 380 x 260 x 220 mm / 15 x 10.2 x 8.7 inch

• Notes

• Rectifier B250/C75L.
  This is an Overseas model (Export model) sold in Portugal

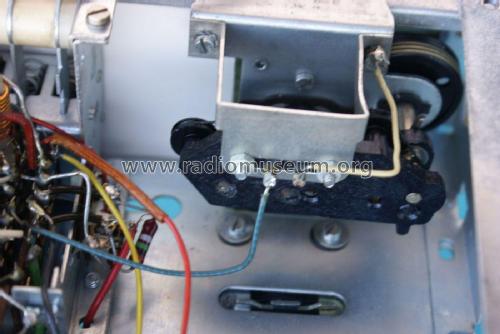

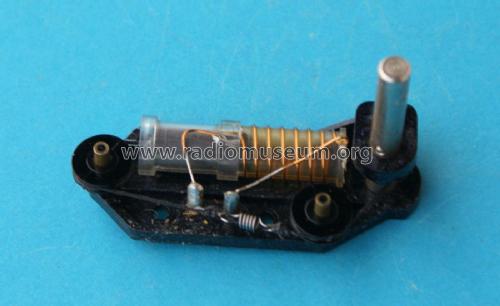

  Sendereinstellknopf durch Zug-Druck umschaltbar auf Drekondensatorabgleich oder Kurzwellenbandspreizung in allen drei Kurzwellenbändern.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 2,580.00 PTE

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
