Fonovox Tempo Type 542005
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273446
-
- alternative name: Löwe Radio
aus ebay, #111718446872, Verkäufer funds123
aus ebay, #111718446872, Verkäufer funds123
aus ebay, #111718446872, Verkäufer funds123

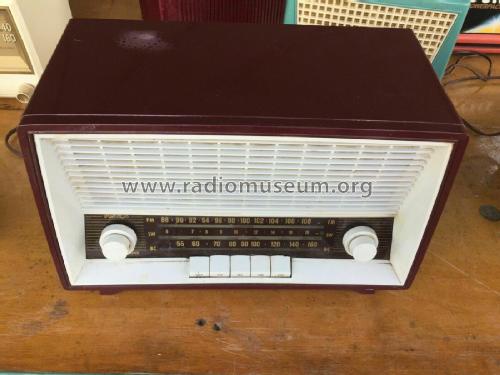

Loewe-Opta Fonovox Tempo 542005 front
Loewe-Opta Fonovox Tempo 542005 front

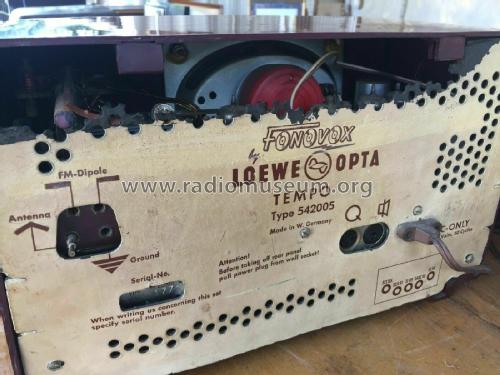

Loewe-Opta Fonovox Tempo 542005 back
Loewe-Opta Fonovox Tempo 542005 back
Loewe-Opta Fonovox Tempo 542005 bottom
Loewe-Opta Fonovox Tempo 542005 front
Loewe-Opta Fonovox Tempo 542005 top
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Fonovox Tempo Type 542005 - Loewe-Opta; Deutschland
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 345 x 210 x 165 mm / 13.6 x 8.3 x 6.5 inch
- Notes
-
Export model for USA.
See also the domestic model Tempo 42005 with long wave, BC and FM bands.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
