Gotland-Stereo II (2) 42029 Ch= 42834

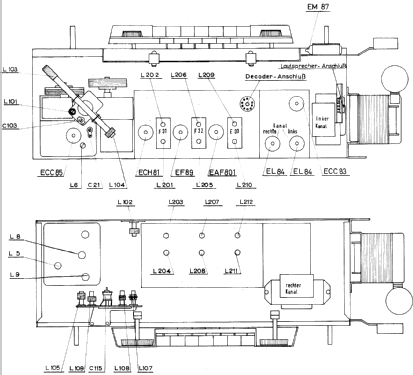

Loewe-Opta;: Gotland-Stereo II 42029 Ch= 42834 [Radio] ID = 582087 581x330
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Löwe Radio | ||||
|---|---|---|---|---|---|
| Year: 1963/1964 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 8: ECC85 ECH81 EF89 EAF801 EM87 ECC83 EL84 EL84 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 8 AM circuit(s) 12 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 220 Volt |
| Loudspeaker | 4 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Gotland-Stereo II 42029 Ch= 42834 - Loewe-Opta; Deutschland |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 640 x 365 x 225 mm / 25.2 x 14.4 x 8.9 inch |
| Notes | Ferritantenne für LM, bei L abschaltbar; Stereo-Decoder nachrüstbar; NF-Verstärker mit 2 Endstufen je 4 W. |
| Net weight (2.2 lb = 1 kg) | 13 kg / 28 lb 10.1 oz (28.634 lb) |
| Price in first year of sale | 469.00 DM |
| External source of data | Erb |
| Source of data | Handbuch VDRG 1963/1964 |
