• Year
  • 1975/1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 133832
    • alternative name: Löwe Radio

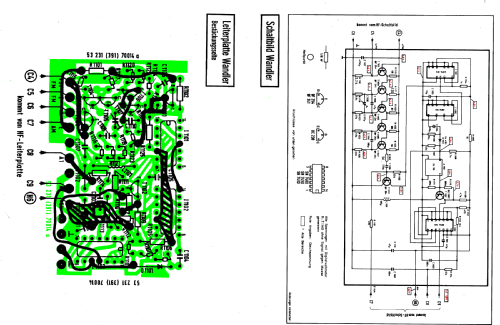

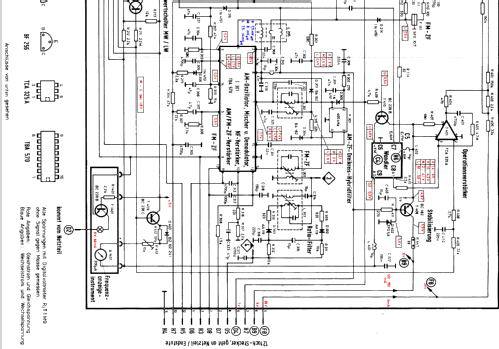

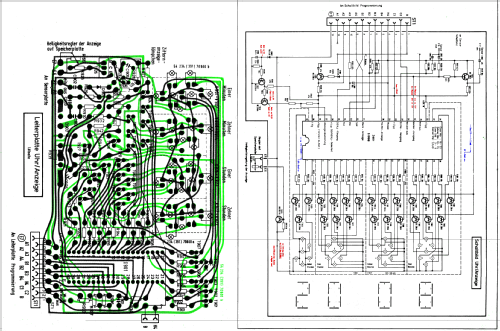

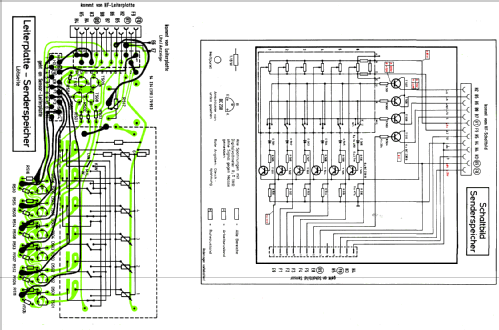

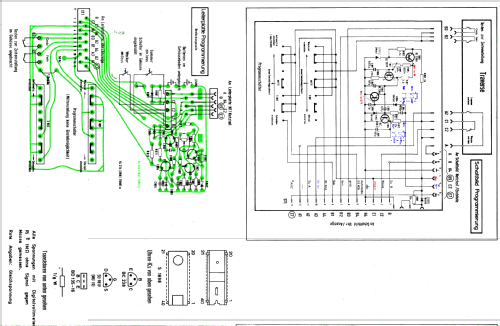

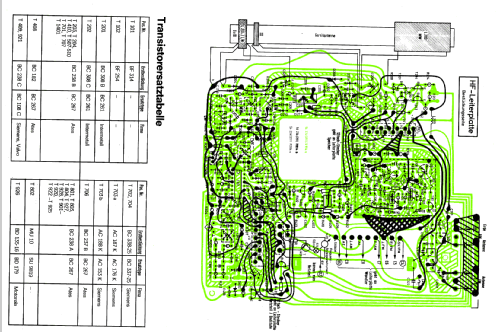

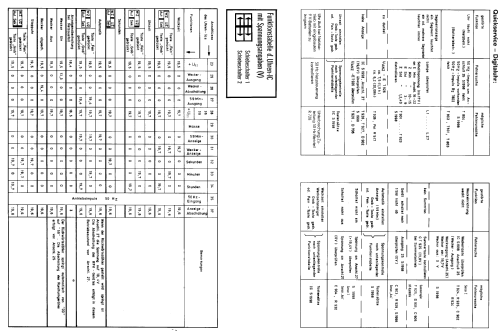

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 66
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
  • Power out
  • 4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Juwel S 54234 - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 360 x 100 x 200 mm / 14.2 x 3.9 x 7.9 inch
  • Notes
  • ICs: 8.
    Loewe Allwellen-Sensorradio Juwel S · 54234.
    Gehäuse: Pultform in perl, rot oder ocker.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Juwel S is part of the collections of the following members.

 Forum

Forum contributions about this model: Loewe-Opta;: Juwel S 54234

Threads: 1 | Posts: 2

Kann mir jemand sagen wofür die beiden großen Tasten oben rechts an dem Gerät sind?

Es muss etwas mit Weckwiederholung, Wochenendfunktion, Weckfunktion und verzögerter Brummtoneinschaltung zu tun haben. Nur was genau und wie?!

Dauert ewig das auszuprobieren, weil man nach jedem Tastendruck einen Tag warten müsste um u sehen was passiert.

Wäre nett, falls jemand die Bedienungsanleitung hat und mich mal reinschauen ließe.

Das Gerät ist meines Wissens der erste Radiowecker mit LED Uhr.





Patric Fincke, 09.Mar.09

Weitere Posts (2) zu diesem Thema.
