Kantate 54734 W

Kantate 54734 W; Loewe-Opta; (ID = 2291366) Radio Kantate 54734 W; Loewe-Opta; (ID = 2291378) Radio
Kantate 54734 W; Loewe-Opta; (ID = 2291367) Radio Kantate 54734 W; Loewe-Opta; (ID = 2291368) Radio
Kantate 54734 W; Loewe-Opta; (ID = 2291379) Radio Kantate 54734 W; Loewe-Opta; (ID = 2291369) Radio
Kantate 54734 W; Loewe-Opta; (ID = 2291370) Radio Kantate 54734 W; Loewe-Opta; (ID = 2291364) Radio
Kantate 54734 W; Loewe-Opta; (ID = 700614) Radio Kantate 54734 W; Loewe-Opta; (ID = 700610) Radio
Use red slider bar for more.

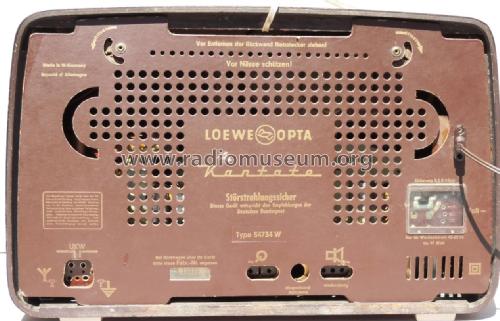

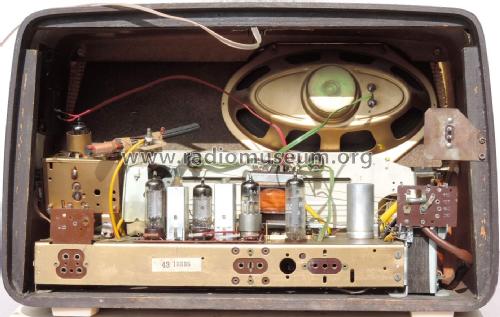

Kantate 54734 W; Loewe-Opta; (ID = 2291366) Radio
Loewe-Opta;: Kantate 54734 W [Radio] ID = 2291366 1400x920
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kantate 54734 W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Kantate 54734 W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Export Version von Loewe Kantate 3721W.
UKW-FM 87 - 108 MHz.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1566 models, 1294 with images and 1146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
