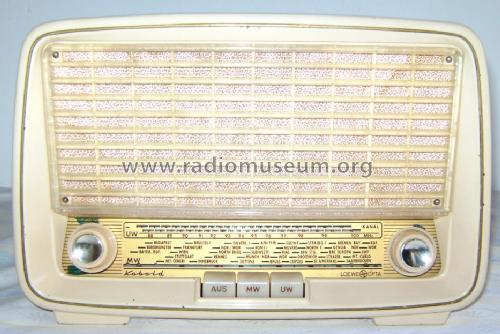

Kobold 4700W
Loewe-Opta;: Kobold 4700W [Radio] ID = 31335 921x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Löwe Radio | ||||
|---|---|---|---|---|---|
| Year: 1959/1960 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECC85 ECH81 EF89 EABC80 EL84 EZ80 |
| Main principle | Super-Heterodyne (Super in general); ZF/IF 460 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 150; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Kobold 4700W - Loewe-Opta; Deutschland |
| Material | Bakelite case |
| Shape | Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only). |
| Dimensions (WHD) | 275 x 185 x 140 mm / 10.8 x 7.3 x 5.5 inch |
| Notes | Achtung, Spartransformator, Sekundärwicklung nur für Röhrenheizung. |
| Net weight (2.2 lb = 1 kg) | 4 kg / 8 lb 13 oz (8.811 lb) |
| Price in first year of sale | 165.00 DM |
| Collectors' prices | |
| External source of data | Erb |
| Source of data | HdB d.Rdf-& Ferns-GrH 1959/60 |
