Komet 53 853Wb ohne Ferritantenne

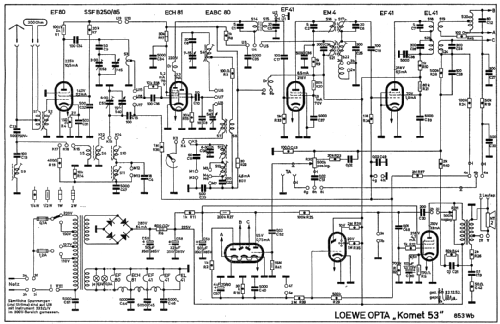

Komet 53 853Wb; Loewe-Opta; (ID = 17645) Radio

Komet 53 853Wb; Loewe-Opta; (ID = 17646) Radio

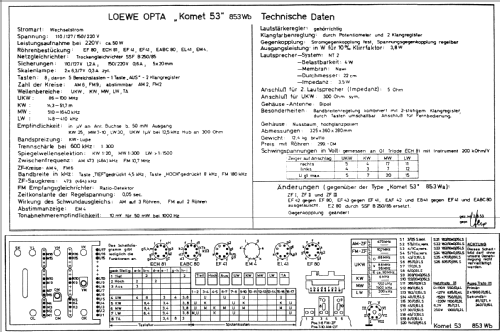

Komet 53 853Wb; Loewe-Opta; (ID = 72008) Radio
Komet 53 853Wb; Loewe-Opta; (ID = 1909385) Radio Komet 53 853Wb; Loewe-Opta; (ID = 1909386) Radio
Use red slider bar for more.
Komet 53 853Wb; Loewe-Opta; (ID = 1909385) Radio
Loewe-Opta;: Komet 53 853Wb [Radio] ID = 1909385 1100x751
Select picture or schematic to display from thumbnails on the right and click for download.
For model Komet 53 853Wb ohne Ferritantenne, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 ECH81 EF41 EF41 EM4 EABC80 EL41
Semiconductors (the count is only for transistors) B250C85
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Komet 53 853Wb [ohne Ferritantenne] - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 360 x 280 mm / 21.3 x 14.2 x 11 inch
Notes

Die technischen Unterlagen erwähnen, wahrscheinlich irrtümlich, eine Breite von 325 mm.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 299.00 DM
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb
