For model Luna Phono 3743W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 160; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Luna Phono 3743W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 555 x 365 x 345 mm / 21.9 x 14.4 x 13.6 inch

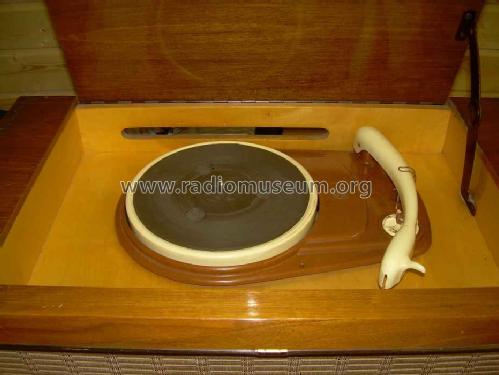

Notes Plattenspieler von Perpetuum Ebner (PE).
Net weight (2.2 lb = 1 kg) 14.6 kg / 32 lb 2.5 oz (32.159 lb)
Price in first year of sale 439.00 DM
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in HdB d.Rdf-& Ferns-GrH 1958/59
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
