Luna-Stereo 52 071

Luna-Stereo 52 071; Loewe-Opta; (ID = 364174) Radio
Luna-Stereo 52 071; Loewe-Opta; (ID = 312767) Radio Luna-Stereo 52 071; Loewe-Opta; (ID = 93829) Radio
Luna-Stereo 52 071; Loewe-Opta; (ID = 312768) Radio Luna-Stereo 52 071; Loewe-Opta; (ID = 312769) Radio
Luna-Stereo 52 071; Loewe-Opta; (ID = 474104) Radio Luna-Stereo 52 071; Loewe-Opta; (ID = 741870) Radio
Luna-Stereo 52 071; Loewe-Opta; (ID = 1848124) Radio
Use red slider bar for more.
Luna-Stereo 52 071; Loewe-Opta; (ID = 312767) Radio
Loewe-Opta;: Luna-Stereo 52 071 [Radio] ID = 312767 900x400

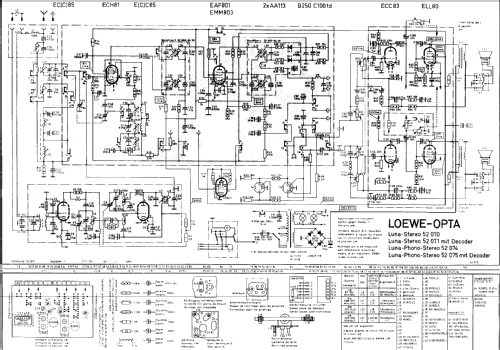

Select picture or schematic to display from thumbnails on the right and click for download.
For model Luna-Stereo 52 071, Loewe-(Opta); Deutschland:
Front mit Kunstlederbezug

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EAF801 ECC83 EMM803 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Luna-Stereo 52 071 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 700 x 235 x 200 mm / 27.6 x 9.3 x 7.9 inch

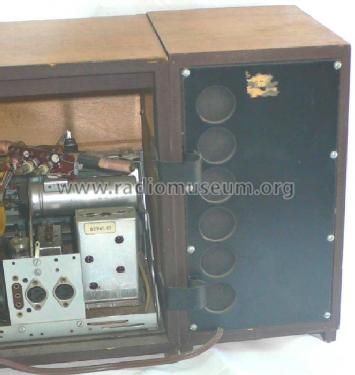

Notes Stereo-Decoder 52941 (mit AF118, 2× AF126) eingebaut, Mono/Stereo-Umschaltung von Hand; Stereo-NF-Verstärker mit 2 Endstufen je 4 W; ein LS als Box abtrennbar.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 668.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
