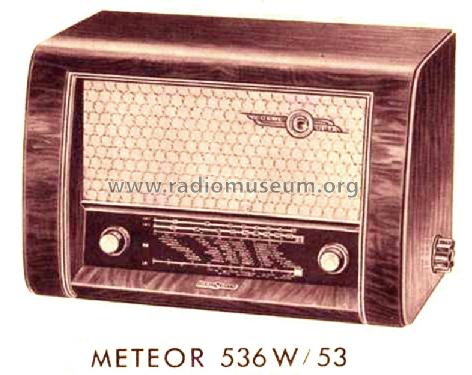

Meteor 536W /53

Loewe-(Opta); Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1953 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 250091
    • alternative name: Löwe Radio

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz; Export model
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Meteor 536W /53 - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 540 x 360 x 280 mm / 21.3 x 14.2 x 11 inch
  • Notes

  • Similar to Loewe Meteor 526W /53 (3x SW and MW, without LW).

    SW1: 21 ... 5.8 MHz
    SW2:  6 ... 2.27 MHz

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
