Meteor-Stereo 42080 (42080 W)

• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24745

• • alternative name: Löwe Radio

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

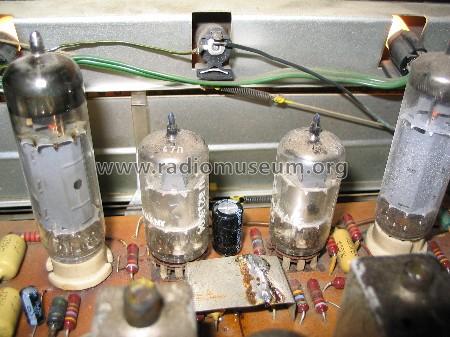

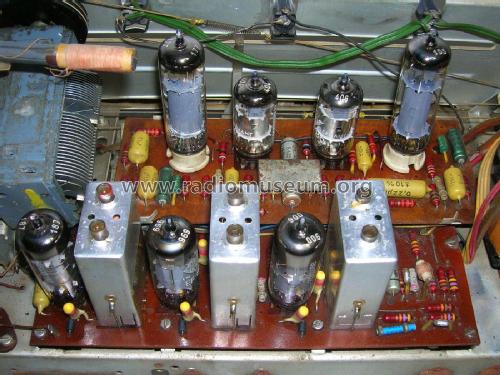

• ECC85 ECH81 EF89 EF80 EM84 EF86 EF86 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Meteor-Stereo 42080 - Loewe-Opta; Deutschland

• Shape

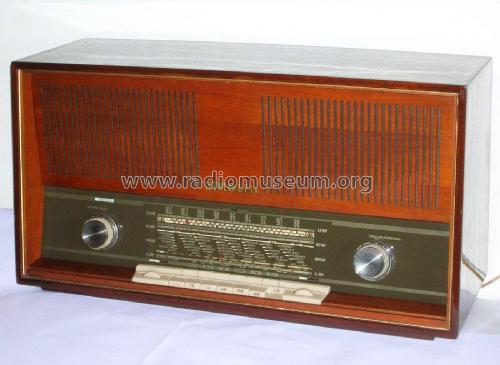

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 350 x 250 mm / 25.6 x 13.8 x 9.8 inch

• Notes
• Dreh- und abschaltbare Ferritantenne; Stereo-Decoder nachrüstbar; NF-Verstärker mit 2 Endstufen je 5 W.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 549.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
