Opta 539GW
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2640
-
- alternative name: Löwe Radio
Loewe Opta Werbung 1938

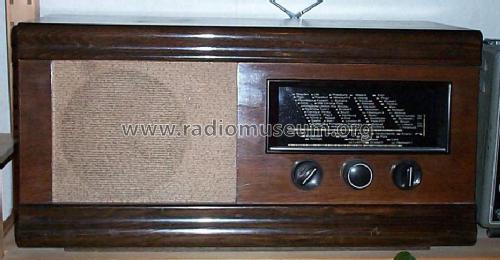

Foto Selbst aufgenommen, Negativscan

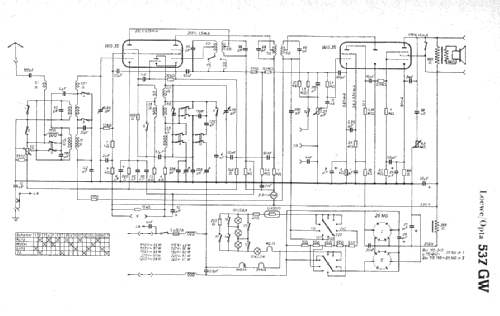

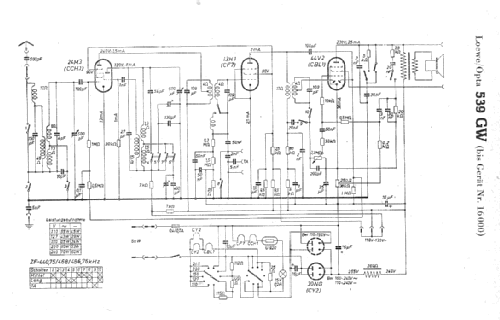

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Opta 539GW - Loewe-Opta; Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 290 x 368 mm / 22.8 x 11.4 x 14.5 inch
- Notes
- ab 16001 andere Schaltung; ZF 440,75/468/486 kHz. Bandbreite schaltbar.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 213.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
