Optacord 404 AC107

Optacord 404; Loewe-Opta; (ID = 453817) R-Player Optacord 404; Loewe-Opta; (ID = 741865) R-Player
Optacord 404; Loewe-Opta; (ID = 1010328) R-Player
Use red slider bar for more.

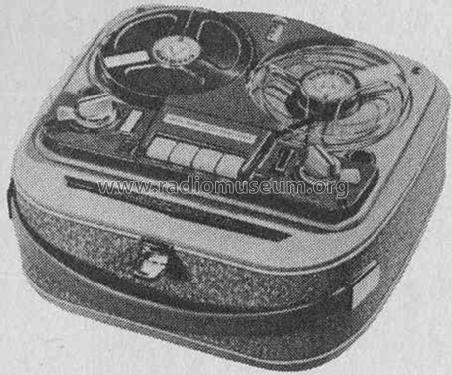

Optacord 404; Loewe-Opta; (ID = 453817) R-Player
Loewe-Opta;: Optacord 404 [R-Player] ID = 453817 457x379
Select picture or schematic to display from thumbnails on the right and click for download.
For model Optacord 404 AC107, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1963/1964 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC83 EC92 EL84 EM84
Semiconductors (the count is only for transistors) 1: AC107
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 117; 150; 200; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Optacord 404 [AC107] - Loewe-Opta; Deutschland
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 365 x 180 x 350 mm / 14.4 x 7.1 x 13.8 inch
Notes Vierspur; Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø 15 cm.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 498.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
