Optacord 404 OC306

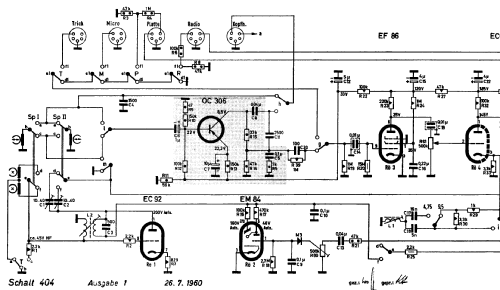

Optacord 404; Loewe-Opta; (ID = 175184) R-Player

Optacord 404; Loewe-Opta; (ID = 175185) R-Player

Optacord 404; Loewe-Opta; (ID = 742272) R-Player

Optacord 404; Loewe-Opta; (ID = 742274) R-Player

Optacord 404; Loewe-Opta; (ID = 742275) R-Player

Optacord 404; Loewe-Opta; (ID = 742276) R-Player
Optacord 404; Loewe-Opta; (ID = 28888) R-Player Optacord 404; Loewe-Opta; (ID = 41611) R-Player
Optacord 404; Loewe-Opta; (ID = 41612) R-Player Optacord 404; Loewe-Opta; (ID = 41613) R-Player
Optacord 404; Loewe-Opta; (ID = 741864) R-Player Optacord 404; Loewe-Opta; (ID = 742049) R-Player
Optacord 404; Loewe-Opta; (ID = 742052) R-Player Optacord 404; Loewe-Opta; (ID = 742055) R-Player
Optacord 404; Loewe-Opta; (ID = 742576) R-Player
Use red slider bar for more.
Optacord 404; Loewe-Opta; (ID = 28888) R-Player
Loewe-Opta;: Optacord 404 [R-Player] ID = 28888 866x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model Optacord 404 OC306, Loewe-(Opta); Deutschland:
Gerät eines Sammlerkollegen

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1960–1963 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC83 EC92 EL84 EM84
Semiconductors (the count is only for transistors) 1: OC306
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 117; 150; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Optacord 404 [OC306] - Loewe-Opta; Deutschland
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 365 x 182 x 350 mm / 14.4 x 7.2 x 13.8 inch
Notes Vierspur; Bandgeschwindigkeiten 4,75/9,5 cm/s; Spulen-Ø 15 cm.
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Price in first year of sale 498.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
