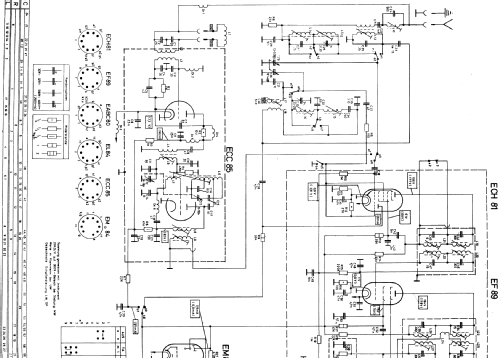

Planet 6740W; Loewe-Opta; (ID = 895435) Radio

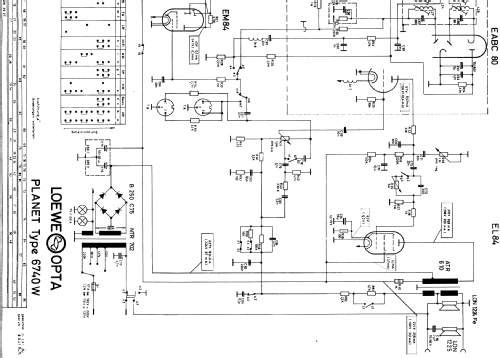

Planet 6740W; Loewe-Opta; (ID = 895436) Radio

Planet 6740W; Loewe-Opta; (ID = 895442) Radio

Planet 6740W; Loewe-Opta; (ID = 895443) Radio
Planet 6740W; Loewe-Opta; (ID = 2062268) Radio Planet 6740W; Loewe-Opta; (ID = 61881) Radio

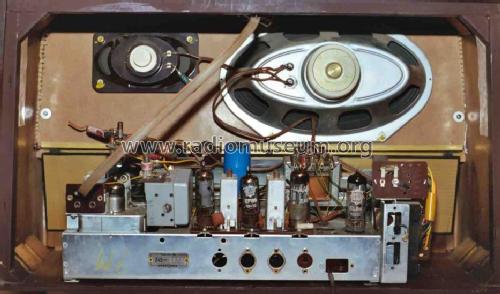

Planet 6740W; Loewe-Opta; (ID = 61882) Radio Planet 6740W; Loewe-Opta; (ID = 61883) Radio
Planet 6740W; Loewe-Opta; (ID = 27222) Radio Planet 6740W; Loewe-Opta; (ID = 27223) Radio
Planet 6740W; Loewe-Opta; (ID = 27224) Radio Planet 6740W; Loewe-Opta; (ID = 305088) Radio

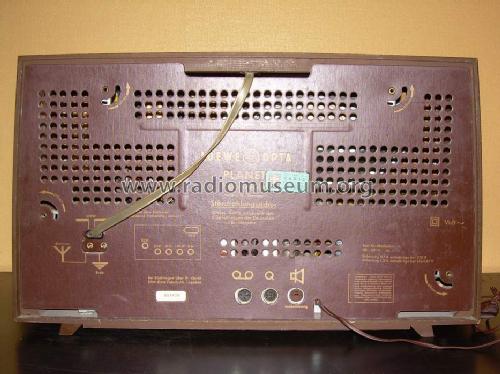

Planet 6740W; Loewe-Opta; (ID = 305091) Radio Planet 6740W; Loewe-Opta; (ID = 305092) Radio
Use red slider bar for more.
Planet 6740W; Loewe-Opta; (ID = 2062268) Radio
Loewe-Opta;: Planet 6740W [Radio] ID = 2062268 1000x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model Planet 6740W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Planet 6740W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 325 x 210 mm / 21.7 x 12.8 x 8.3 inch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 309.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
