• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24742

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EBC81 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

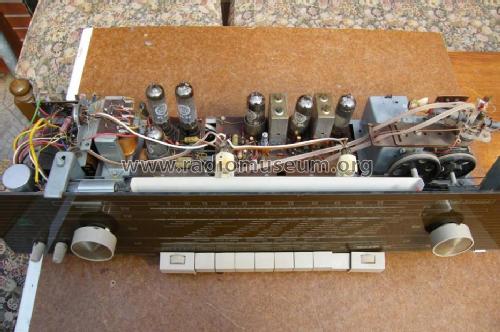

• Model: Planet-Stereo 42 028 Ch= 42830 - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 300 x 205 mm / 24.4 x 11.8 x 8.1 inch

• Notes
• Stereo-Decoder nachrüstbar; NF-Verstärker mit 2 Endstufen je 4 W.

• Net weight (2.2 lb = 1 kg)
• 9.9 kg / 21 lb 12.9 oz (21.806 lb)

• Price in first year of sale
• 419.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
