For model Ronny 6945, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC71 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: Ronny 6945 - Loewe-Opta; Deutschland
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 175 x 80 mm / 10.2 x 6.9 x 3.1 inch

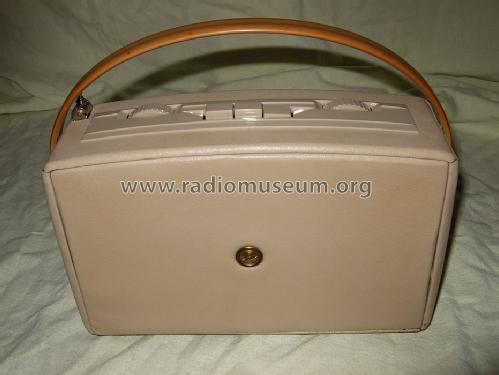

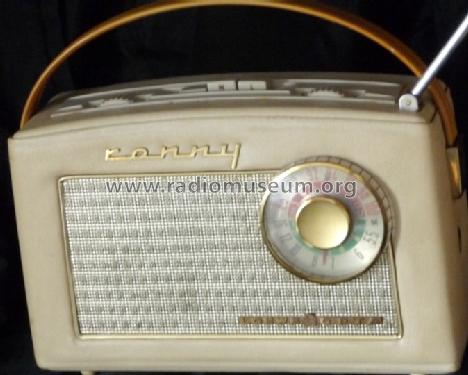

Notes Loewe Opta Ronny 6945 hat ein Kunstleder-bezogenes Holzgehäuse.
Ausführung beige oder korallenrot.
Im VDRG-Handbuch werden fälschlicherweise 12 FM-Kreise angegeben.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 219.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1581 models, 1307 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Loewe-Opta;: Ronny 6945
Threads: 1 | Posts: 1
Hits: 1391     Replies: 0
loewe-opta: 6945; Ronny
Ottmar Lauth
22.Jul.08

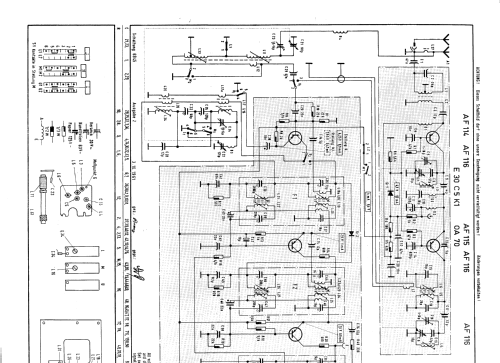

  1 Der im Schaltbild unten dargestellte Endtransistor dürfte wohl insofern falsch dargestellt sein als sein Emitter nach oben gehört.Die beiden Emitter müssen galvanisch miteinander verbunden sein.
