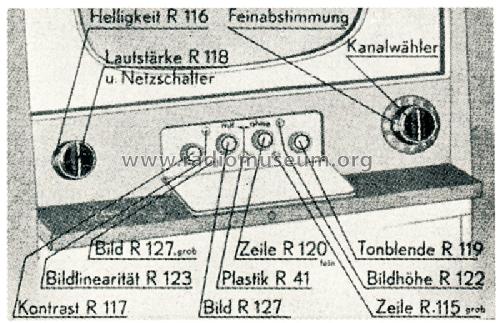

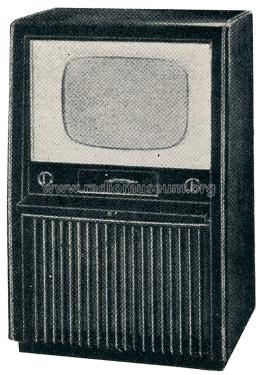

Tribüne 602; Loewe-Opta; (ID = 313292) Television Tribüne 602; Loewe-Opta; (ID = 1477640) Television

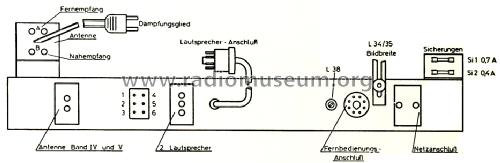

Tribüne 602; Loewe-Opta; (ID = 1477641) Television Tribüne 602; Loewe-Opta; (ID = 1477642) Television

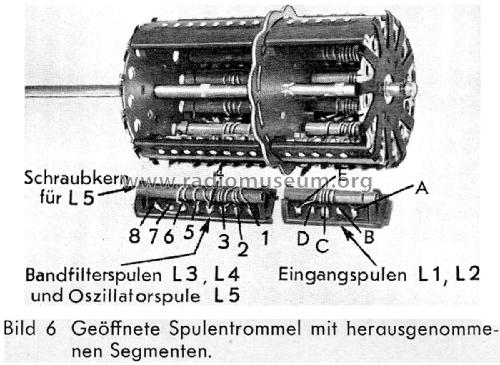

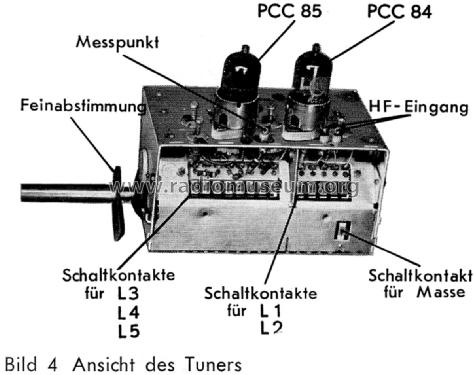

Tribüne 602; Loewe-Opta; (ID = 2538319) Television Tribüne 602; Loewe-Opta; (ID = 2538320) Television

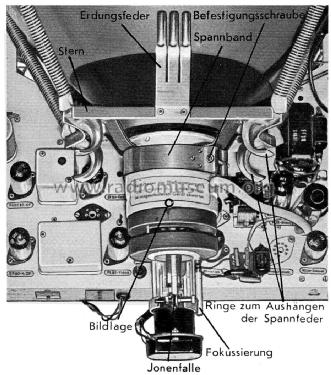

Tribüne 602; Loewe-Opta; (ID = 2538321) Television
Use red slider bar for more.

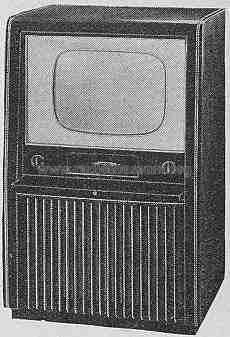

Tribüne 602; Loewe-Opta; (ID = 313292) Television
Loewe-Opta;: Tribüne 602 [Television] ID = 313292 230x337
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tribüne 602, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC84 PCC85 EF80 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 ECL80 ECL80 PY81 PL82 ECC82 PL81 EY51 MW43-64
Semiconductors (the count is only for transistors) DS1606 DS161 DS181z E220C350
Main principle Superheterodyne (common); ZF/IF 28750 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Tribüne 602 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 610 x 960 x 530 mm / 24 x 37.8 x 20.9 inch
Notes

10 VHF-Kanäle + 2 Reserve, Einbau UHF-Converter vorgesehen.

Anschluss für Zusatzlautsprecher;
Anschluss für Kabelfernbedienung, nur für Helligkeit-Regelung.

Net weight (2.2 lb = 1 kg) 47 kg / 103 lb 8.4 oz (103.524 lb)
Price in first year of sale 1'198.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1313 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Loewe-Opta;: Tribüne 602
Threads: 1 | Posts: 1
Hits: 1320     Replies: 0
loewe-opta: 602; Tribüne
Hans-Peter Kexel
29.Apr.09
  1

Schaltungsänderung  ab Fabr. Nr. 21801 vom 24.11.1955


Loewe-Opta;: Tribüne 602
