Tribüne 603

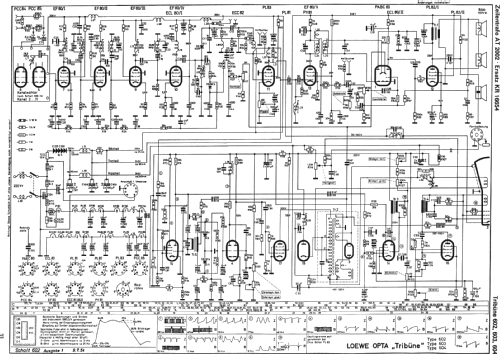

Tribüne 603; Loewe-Opta; (ID = 234980) Television
Tribüne 603; Loewe-Opta; (ID = 313293) Television
Use red slider bar for more.
Tribüne 603; Loewe-Opta; (ID = 313293) Television
Loewe-Opta;: Tribüne 603 [Television] ID = 313293 230x337
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tribüne 603, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PCC84 PCC85 EF80 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 ECL80 ECL80 PY81 PL82 ECC82 PL81 EY51 MW53-20
Main principle Superheterodyne (common); ZF/IF 28750 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Tribüne 603 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 610 x 1000 x 560 mm / 24 x 39.4 x 22 inch
Notes 10 VHF-Kanäle + 2 Reserve, Einbau UHF-Converter vorgesehen.
Net weight (2.2 lb = 1 kg) 45 kg / 99 lb 1.9 oz (99.119 lb)
Price in first year of sale 1'348.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
