1G1-0001-7

1G1-0001-7; Lorenz; Berlin, (ID = 1899148) Radio
1G1-0001-7; Lorenz; Berlin, (ID = 690691) Radio 1G1-0001-7; Lorenz; Berlin, (ID = 690692) Radio
1G1-0001-7; Lorenz; Berlin, (ID = 690693) Radio 1G1-0001-7; Lorenz; Berlin, (ID = 1051562) Radio
1G1-0001-7; Lorenz; Berlin, (ID = 1051563) Radio 1G1-0001-7; Lorenz; Berlin, (ID = 1051564) Radio
1G1-0001-7; Lorenz; Berlin, (ID = 1051565) Radio 1G1-0001-7; Lorenz; Berlin, (ID = 1888637) Radio
1G1-0001-7; Lorenz; Berlin, (ID = 1888638) Radio 1G1-0001-7; Lorenz; Berlin, (ID = 1888639) Radio
Use red slider bar for more.

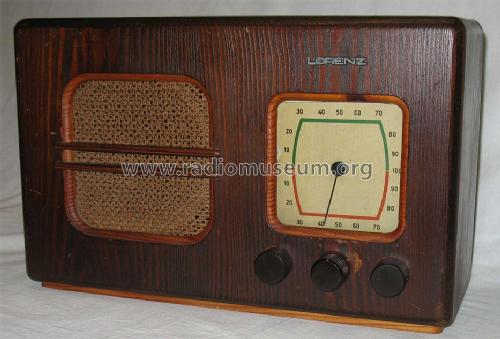

1G1-0001-7; Lorenz; Berlin, (ID = 690691) Radio
Lorenz; Berlin,: 1G1-0001-7 [Radio] ID = 690691 933x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1G1-0001-7, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: RV12P2000 or RV12P2001 RV12P2000 or RV12P2001
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 1G1-0001-7 - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Dimensions (WHD) 335 x 210 x 140 mm / 13.2 x 8.3 x 5.5 inch
Notes Nur technische Bezeichnung bekannt. Chassis und Rückwand (beides modifiziert) stammen vom deutschen Kleinempfänger DKE.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9503)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
