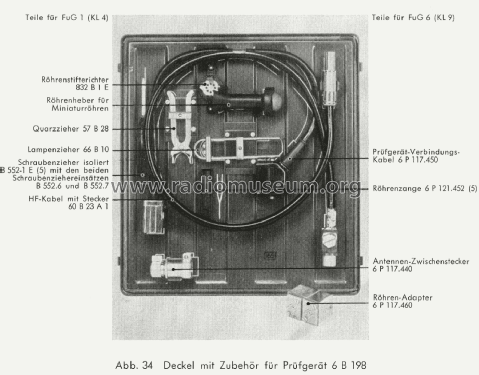

For model FuG 6 KL 9, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1955 Category: Commercial Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 17: 1AD4 5678 5678 5678 5678 5678 5678 5678 1AD4 1AD4 5678 1AD4 1AD4 1AD4 1AD4 1AD4 1AD4
Main principle Transceiver; 1 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 & 1,5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: FuG 6 KL 9 - Lorenz; Berlin, Zuffenhausen u
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 270 x 130 x 80 mm / 10.6 x 5.1 x 3.1 inch
Notes Hand-Sprechfunkgerät (Betriebsart: FM-Wechselsprechen) für Behörden und Organisationen mit Sicherheitsaufgaben (BOS). 3 Kanäle im Bereich 172,0 bis 173,5 MHz. Betriebsdauer je Batterieladung: 9 Stunden bei 20 % Sendezeit. Empfänger-Empfindlichkeit: ca. 1 uV bei 15 kHz Hub. Trennschärfe: 70 db bei 100 kHz. Pre- und Deemphasis: 6 db je Oktave. NF-Ausgangsleistung: 5 bis 10 mW an 200 Ohm.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Mentioned in Funkgeschichte der GFGF (Heft 140, Nov./Dez. 2001)

Model page created by Siegfried Droese. See "Data change" for further contributors.
