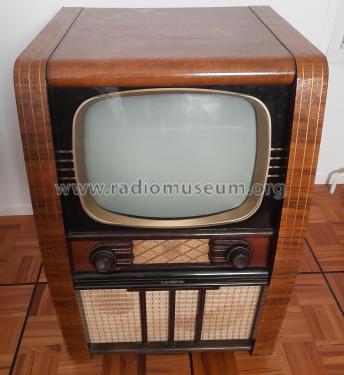

Monopol 17 8784

Monopol 17 8784; Lorenz; Berlin, (ID = 2654677) Television
Monopol 17 8784; Lorenz; Berlin, (ID = 1630685) Television Monopol 17 8784; Lorenz; Berlin, (ID = 1630686) Television
Monopol 17 8784; Lorenz; Berlin, (ID = 1630687) Television Monopol 17 8784; Lorenz; Berlin, (ID = 1630688) Television
Monopol 17 8784; Lorenz; Berlin, (ID = 1630689) Television Monopol 17 8784; Lorenz; Berlin, (ID = 1630690) Television
Monopol 17 8784; Lorenz; Berlin, (ID = 1630691) Television Monopol 17 8784; Lorenz; Berlin, (ID = 2654675) Television
Monopol 17 8784; Lorenz; Berlin, (ID = 2654676) Television
Use red slider bar for more.
Monopol 17 8784; Lorenz; Berlin, (ID = 1630685) Television
Lorenz; Berlin,: Monopol 17 8784 [Television] ID = 1630685 436x566
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monopol 17 8784, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1954 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC84 ECC81 EF94 EF94 EF94 EF80 PCL81 PL83 EF94 EF94 EF94 ECC81 PL81 PL82 ECC81 PY83 EY51 Bs42R-3
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
schematic requested
Main principle Superhet with RF-stage; Export model
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Monopol 17 8784 - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 540 x 815 x 525 mm / 21.3 x 32.1 x 20.7 inch
Notes

Lorenz Monopol 17 8784 ist ein Exportgerät für die Schweiz. Nur VHF Band I und III.

Siehe auch Lorenz Illustraphon 17 8684.

Model page created by Axel Paap. See "Data change" for further contributors.
