Recordophone T22U

Recordophone T22U; Lorenz; Berlin, (ID = 167358) Radio

Recordophone T22U; Lorenz; Berlin, (ID = 167360) Radio

Recordophone T22U; Lorenz; Berlin, (ID = 167365) Radio

Recordophone T22U; Lorenz; Berlin, (ID = 2467665) Radio
Recordophone T22U; Lorenz; Berlin, (ID = 16528) Radio Recordophone T22U; Lorenz; Berlin, (ID = 16529) Radio

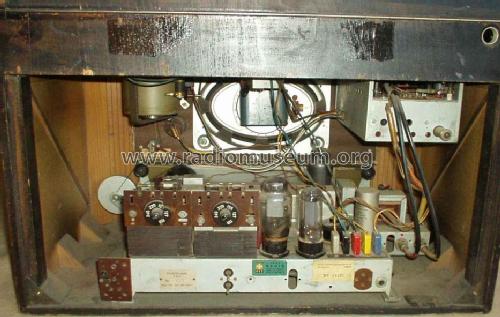

Recordophone T22U; Lorenz; Berlin, (ID = 16530) Radio Recordophone T22U; Lorenz; Berlin, (ID = 24310) Radio
Recordophone T22U; Lorenz; Berlin, (ID = 24311) Radio Recordophone T22U; Lorenz; Berlin, (ID = 24312) Radio

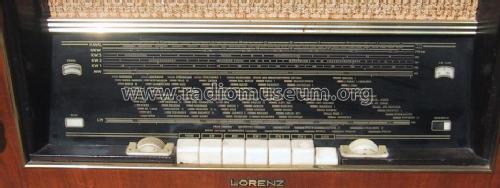

Recordophone T22U; Lorenz; Berlin, (ID = 24314) Radio Recordophone T22U; Lorenz; Berlin, (ID = 24315) Radio
Recordophone T22U; Lorenz; Berlin, (ID = 24316) Radio Recordophone T22U; Lorenz; Berlin, (ID = 24317) Radio
Use red slider bar for more.
Recordophone T22U; Lorenz; Berlin, (ID = 16528) Radio

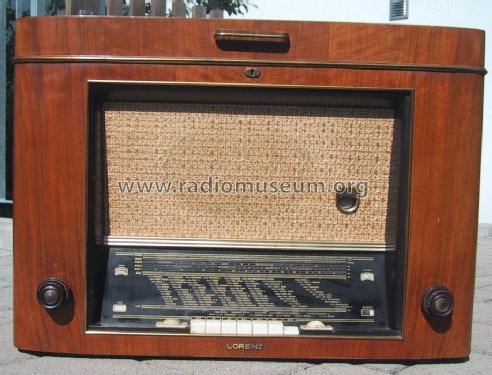

Lorenz; Berlin,: Recordophone T22U [Radio] ID = 16528 933x667
Select picture or schematic to display from thumbnails on the right and click for download.

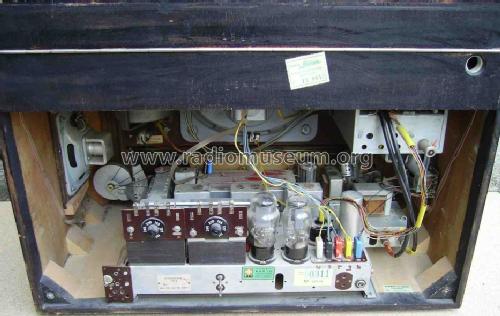

For model Recordophone T22U, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16: EC92 EC92 ECH81 EF93 EM71 EF94 EABC80 EL12 AZ12 EF40 EBC91 EF94 EBC91 EL90 EM71 AZ11
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC)
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Recordophone T22U - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 670 x 475 x 380 mm / 26.4 x 18.7 x 15 inch
Notes

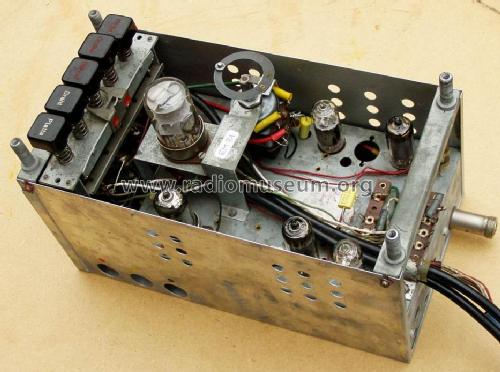

Magnetdrahtgerät oben eingebaut und zugleich Plattenspieler; 3 KW-Bereiche; entspricht Schaub Supraphon 53 - vor allem auch Export, z.B. in die Schweiz.

Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Price in first year of sale 1'478.00 DM

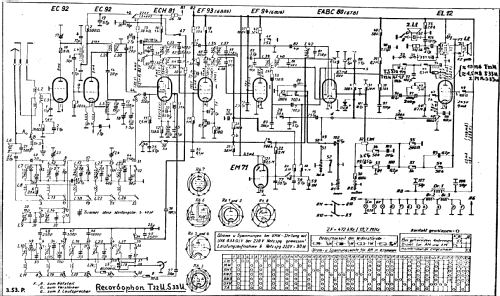

Literature/Schematics (1) -- Original-techn. papers.
