Recordophone S33 (T22)

• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168595

• • Brand: SEL

• Picture

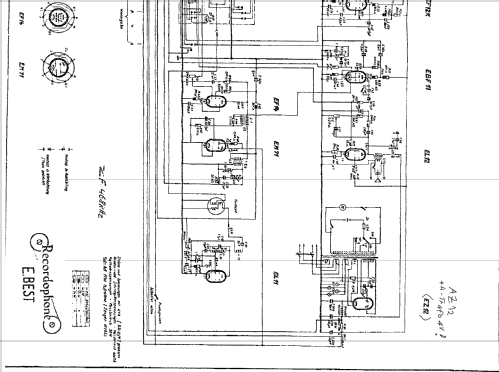

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECH11 EBF11 EBF11 EL12 EM71 EM71 EF12 EF12 EF14 EL11 AZ12

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Recordophone S33 - Lorenz; Berlin, Zuffenhausen u

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1080 x 780 x 375 mm / 42.5 x 30.7 x 14.8 inch

• Notes
• Radio-Empfangsteil wie im Heimstudio 52
  Das Recordophon (Recordophone) S33 enthält das kombinierte Drahttongerät/Plattenspieler Supraphon. Export für die Schweiz, Vertrieb, Verkauf und Vermietung über Radio Steiner AG, Bern. Im Katalog von Radio Steiner von 1952 enthalten.
  UKW-FM Empfangsteil Lorenz ULEI 52W/IV nachrüstbar, dann zusätzliche Röhren ECH42, EF43, EF42, EB41.
  Même caisse que le S33U. Enregistreur à fil.

• Net weight (2.2 lb = 1 kg)
• 54 kg / 118 lb 15.1 oz (118.943 lb)

• Price in first year of sale
• 2,090.00 CHF

• Mentioned in
• Katalog Radio Steiner AG Bern 1952

• Author
• Model page created by Daniel Strago. See "Data change" for further contributors.
