Standard-Super 48W Pressstoff

Standard-Super 48W; Lorenz; Berlin, (ID = 8912) Radio

Standard-Super 48W; Lorenz; Berlin, (ID = 367160) Radio
Standard-Super 48W; Lorenz; Berlin, (ID = 100384) Radio Standard-Super 48W; Lorenz; Berlin, (ID = 325642) Radio
Standard-Super 48W; Lorenz; Berlin, (ID = 100385) Radio Standard-Super 48W; Lorenz; Berlin, (ID = 325639) Radio
Standard-Super 48W; Lorenz; Berlin, (ID = 325640) Radio Standard-Super 48W; Lorenz; Berlin, (ID = 913051) Radio

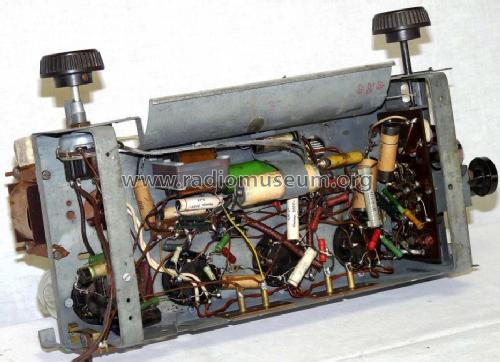

Standard-Super 48W; Lorenz; Berlin, (ID = 913052) Radio Standard-Super 48W; Lorenz; Berlin, (ID = 913053) Radio
Standard-Super 48W; Lorenz; Berlin, (ID = 913055) Radio Standard-Super 48W; Lorenz; Berlin, (ID = 913056) Radio
Use red slider bar for more.
Standard-Super 48W; Lorenz; Berlin, (ID = 100384) Radio
Lorenz; Berlin,: Standard-Super 48W [Radio] ID = 100384 817x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Standard-Super 48W Pressstoff, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Standard-Super 48W [Pressstoff] - Lorenz; Berlin, Zuffenhausen u
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 387 x 295 x 200 mm / 15.2 x 11.6 x 7.9 inch
Notes

Keine Netztrennung, Autotrafo !
Gemeinschaftsproduktion Britische Zone !

Siehe auch Standard-Super 1947.

Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 475.00 RM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk Nr. 30 von 1948
Mentioned in Funkgeschichte der GFGF (9503)
Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"
