Super Lux UKW A 5271

Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603779) Radio Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603781) Radio
Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603782) Radio Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603627) Radio

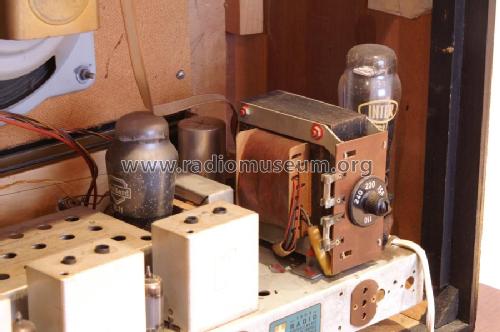

Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603628) Radio Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603780) Radio
Use red slider bar for more.
Super Lux UKW A 5271; Lorenz; Berlin, (ID = 603779) Radio
Lorenz; Berlin,: Super Lux UKW A 5271 [Radio] ID = 603779 933x673
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Lux UKW A 5271, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: EC92 EC92 EF94 ECH81 EM85 EF93 EF94 EABC80 EL12 AZ12
Main principle Superheterodyne (common)
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Super Lux UKW A 5271 - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 430 x 275 mm / 26 x 16.9 x 10.8 inch
Notes Exportmodell Schweiz.
Drehbare Ferritantenne mit eigener Vorstufe. Siehe auch das technisch baugleiche Modell Schaub Gross-Super 55.
Net weight (2.2 lb = 1 kg) 16.2 kg / 35 lb 10.9 oz (35.683 lb)

Model page created by Walter Surber. See "Data change" for further contributors.
