Weekend 53; Lorenz; Berlin, (ID = 2117162) Radio

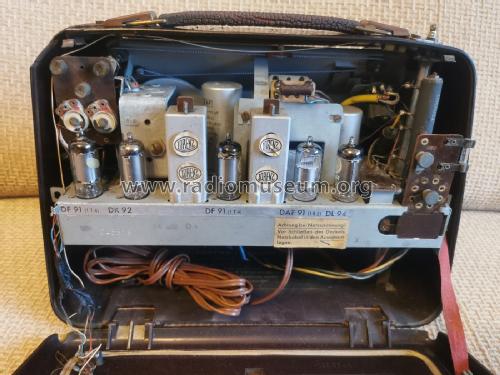

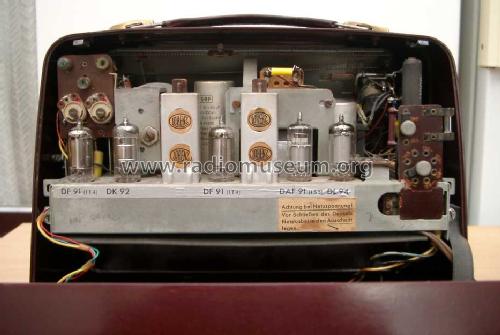

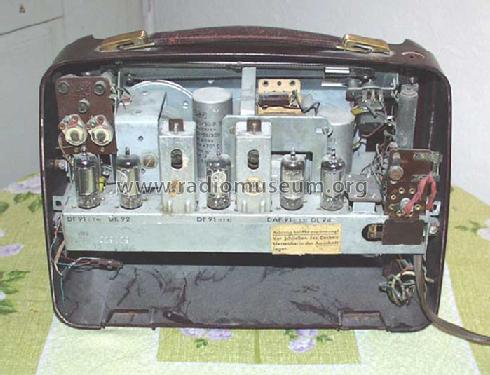

Lorenz; Berlin,: Weekend 53 [Radio] ID = 2117162 1316x1064
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weekend 53, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF91 DK92 DF91 DAF91 DL94
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110; 127 or 125; 155 or 160; 220 / 9 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Weekend 53 - Lorenz; Berlin, Zuffenhausen u
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 210 x 130 mm / 11.8 x 8.3 x 5.1 inch
Notes

Siehe auch Schaub Amigo III (3) mit identischem Chassis.

Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 230.00 DM
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb

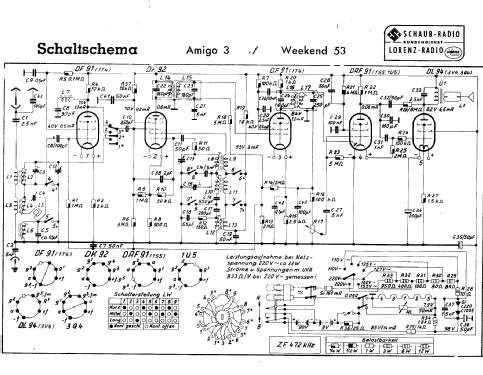

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
