- Country
- Germany
- Manufacturer / Brand
- Lumophon, Bruckner & Stark, Nürnberg
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3316
-
- Brand: Lumeta

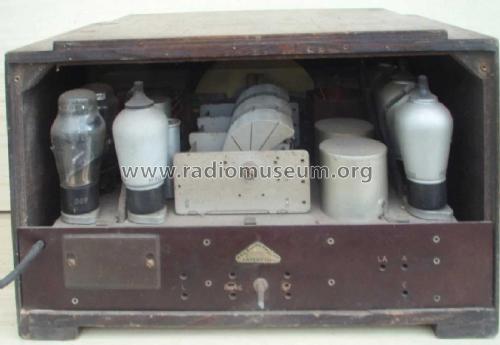

In courtesy of Vagisek.
Hersteller Prospekt
Hersteller Prospekt ~1932/33

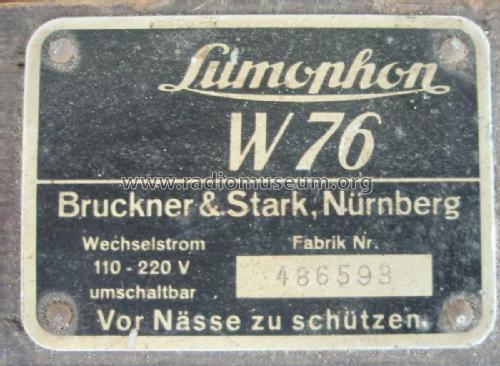

In courtesy of Vagisek.
In courtesy of Vagisek.
In courtesy of Vagisek.
In courtesy of Vagisek.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 065 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: W76 - Lumophon, Bruckner & Stark,
- Dimensions (WHD)
- 430 x 280 x 265 mm / 16.9 x 11 x 10.4 inch
- Notes
-
AVC;Vorstufe?
Preis ohne Röhren, zusätzlich Röhrensatz: 106,75 RM
- Price in first year of sale
- 182.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
- Mentioned in
- Funkgeschichte der GFGF (9286)
