Othello 1804W
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 325139
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

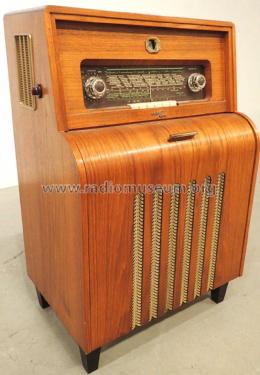

Courtesy Dyrgripen Handelshus AB

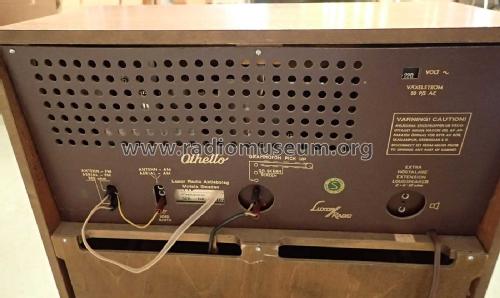

Courtesy Dyrgripen Handelshus AB
Courtesy Dyrgripen Handelshus AB
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Othello 1804W - Luxor Radio AB; Motala
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 500 x 770 x 340 mm / 19.7 x 30.3 x 13.4 inch
- Notes
-
Record changer = RT series
- Author
- Model page created by Lennart Nilsson. See "Data change" for further contributors.
