• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162212

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 462/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12 cm = 4.7 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

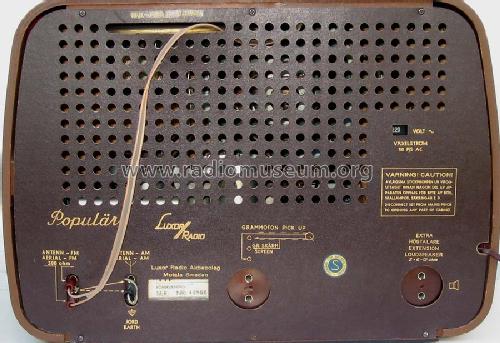

• Model: Populär 3095W - Luxor Radio AB; Motala

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 453 x 330 x 220 mm / 17.8 x 13 x 8.7 inch

• Notes
• Electrostatic tweeter. FM-band 86-108 MHz.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by Lennart Nilsson. See "Data change" for further contributors.
