Soprano 797

Soprano 797; Luxor, Helsinki - (ID = 2316643) Radio Soprano 797; Luxor, Helsinki - (ID = 2316644) Radio
Soprano 797; Luxor, Helsinki - (ID = 2316645) Radio Soprano 797; Luxor, Helsinki - (ID = 2316646) Radio
Soprano 797; Luxor, Helsinki - (ID = 2316647) Radio
Use red slider bar for more.
Soprano 797; Luxor, Helsinki - (ID = 2316643) Radio
Luxor, Helsinki -: Soprano 797 [Radio] ID = 2316643 1400x787

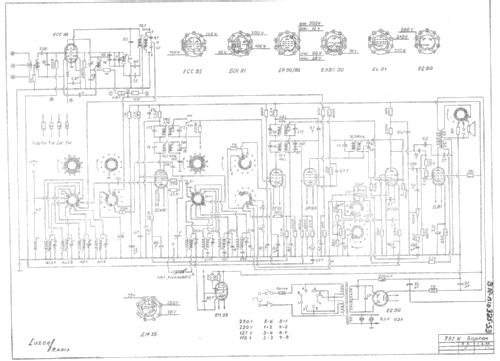

Select picture or schematic to display from thumbnails on the right and click for download.
For model Soprano 797, Luxor, Helsinki - see also Sweden

Country:  Finland
Manufacturer / Brand:  Luxor, Helsinki - see also Sweden
alternative name

Iskumetalli Oy
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF85 EF80 EM35 EABC80 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Soprano 797 - Luxor, Helsinki - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 330 x 230 mm / 17.7 x 13 x 9.1 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.
