A31

A31; Magnadyne Radio; (ID = 2469114) Radio
A31; Magnadyne Radio; (ID = 1467151) Radio
Use red slider bar for more.
A31; Magnadyne Radio; (ID = 1467151) Radio
Magnadyne Radio;: A31 [Radio] ID = 1467151 428x279
Select picture or schematic to display from thumbnails on the right and click for download.
For model A31, Magnadyne Radio; Torino:

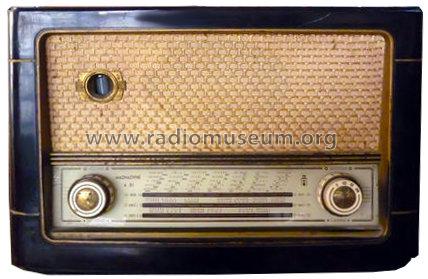

Magnadyne A31.
Photo by courtesy of a guest

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 25E2 12P1 12DT1 35F6 EM80 35R2
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A31 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Source of data Guida Pratica Antique Radio (1) 1999

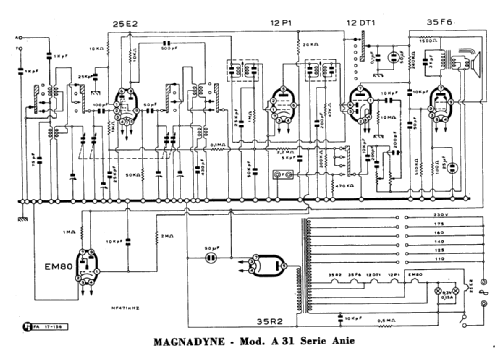

Mentioned in -- Schematic (Schemario radioindustria 1958.)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
