Stereo Console Preamplifier Model 7 Reissue

Stereo Console Preamplifier Model 7; Marantz; Itasca (ID = 2554254) Ampl/Mixer Stereo Console Preamplifier Model 7; Marantz; Itasca (ID = 2554255) Ampl/Mixer
Stereo Console Preamplifier Model 7; Marantz; Itasca (ID = 2554256) Ampl/Mixer Stereo Console Preamplifier Model 7; Marantz; Itasca (ID = 2554257) Ampl/Mixer
Use red slider bar for more.

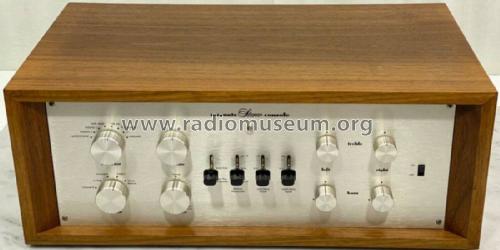

Stereo Console Preamplifier Model 7; Marantz; Itasca (ID = 2554254) Ampl/Mixer
Marantz; Itasca: Stereo Console Preamplifier Model 7 [Ampl/Mixer] ID = 2554254 1100x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Console Preamplifier Model 7 Reissue, Marantz; Itasca:
yahoo.co.jp auction item_o385241713 seller unisound045

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz; Itasca
Year: 1996 Category: Audio Amplifier or -mixer
Valves / Tubes 6: ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Console Preamplifier Model 7 [Reissue] - Marantz; Itasca
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 15 x 5.75 x 8.5 inch / 381 x 146 x 216 mm
Notes

One of the "Marantz Classic Series" of three reissued Marantz hi-fi products originally built in the 1960s, including the Marantz Model 9 Power  Amplifier and the Marantz Model 8B Stereo Power Amplifier. Built by the Valve Amplification Company Inc., Sarasota, Florida, to the exact original specification from parts made by the original suppliers

Its specification is identical to that of the original Marantz Model 7 Stereo Console Preamplifier.

  • Construction: Aluminum chassis. Solid aluminum brushed and anodized faceplate in original color. Machined and finished control knobs and switches to original specifications. Optional wooden outer case.
  • Frequency response: within 0.5 dB from 20Hz-20kHz
  • 8-position source selector switch; Microphone, Phono 1, Phono 2, Tape Head, FM/AM, FM Multiplex, TV, Auxiliary
  • 5-position mode selector switch; Stereo, Stereo Reverse, Left, Right, Mono
  • Master balance control
  • Tone controls for Bass and Treble; one pair for each channel. Stepped in increments of 3dB at 50Hz and 2.5dB at 10kHz. Bypassed in "Flat" position
  • 3-position record equalizer; RIAA, old Columbia LP, early 78
  • 3-position high filter; 5 kHz, 9kHz, bypass
  • 3-position rumble filter; 50 Hz, 100 Hz, bypass
  • 9 pairs of inputs; 3 pairs of outputs
  • Output level and tape head equalization adjustments
  • 6 AC convenience outlets

Power requirements
120 Volt/60 Hz. Detachable IEC power AC cord with ground

Made in the USA

Net weight (2.2 lb = 1 kg) 15 lb (15 lb 0 oz) / 6.810 kg
Mentioned in -- Original prospect or advert (1996 Marantz Classic Series Catalogue)

Model page created by Howard Craven. See "Data change" for further contributors.
