Marconi 1531 (Ch= 1531.1)
La Voce del Padrone; Milano
- Country
- Italy
- Manufacturer / Brand
- La Voce del Padrone; Milano
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104544

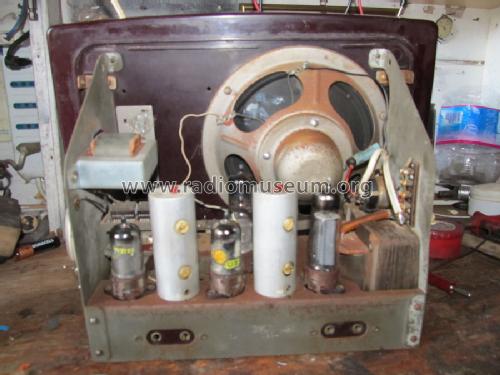

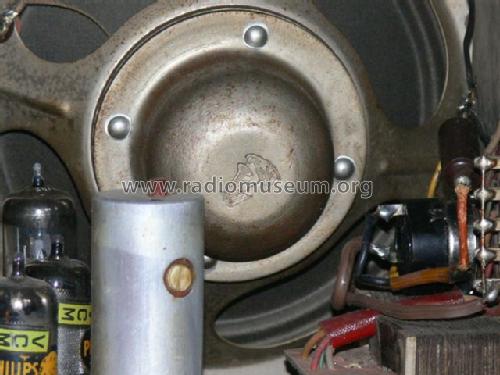

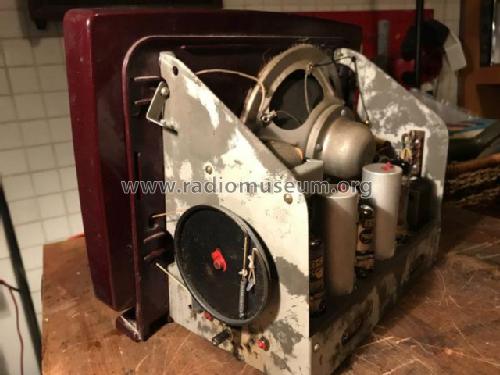

I Marconi 1531 interno
I Marconi 1531 interno
I Marconi 1531 interno
I Marconi 1531 interno
I Marconi 1531 interno

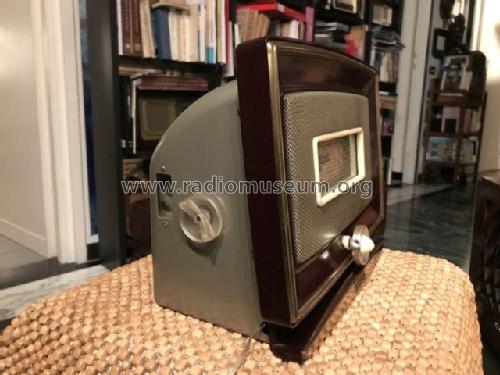

I Marconi 1531 manopole laterali originali

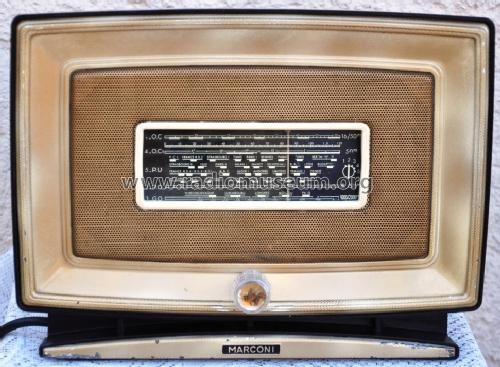

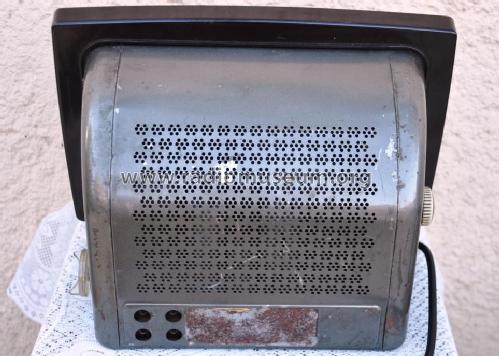

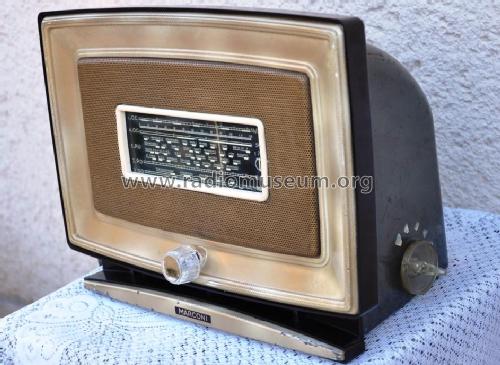

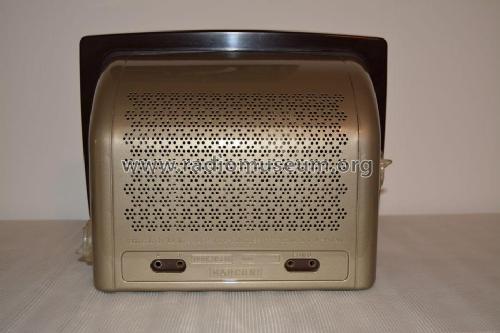

I Marconi esterno
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Marconi 1531 - La Voce del Padrone; Milano
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 330 x 250 x 170 mm / 13 x 9.8 x 6.7 inch
- Notes
- Quattro gamme d'onda: OM1 570-430 mt, OM2 435-187 mt, OC1 52-38,5 mt, OC2 38.5-18 mt. Mobile in metallo con cornice in materiale plastico.
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Price in first year of sale
- 38,800.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- Catalogo ANIE
- Literature/Schematics (1)
- Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 152)
- Literature/Schematics (2)
- -- Original prospect or advert (L'Antenna, n.9, settembre 1952)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
