108B; Marelli Radiomarelli (ID = 2146178) Radio

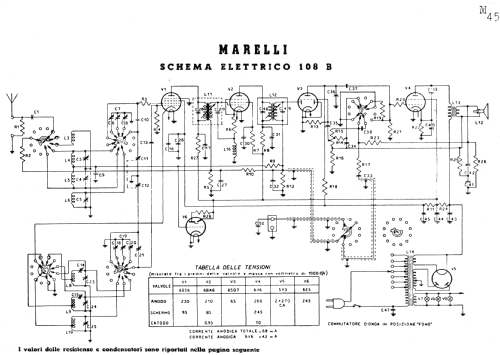

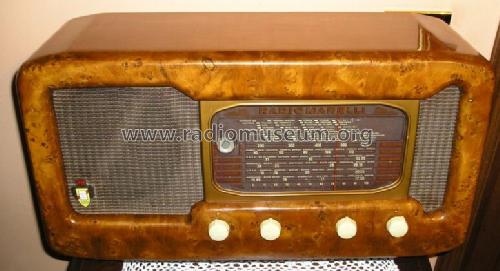

Marelli Radiomarelli: 108B [Radio] ID = 2146178 1400x797
Select picture or schematic to display from thumbnails on the right and click for download.
For model 108B, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6SQ7 6V6 6E5GT 5Y3
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 135; 160; 190; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 3.2 W (unknown quality)
from Radiomuseum.org Model: 108B - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 340 x 250 mm / 27.6 x 13.4 x 9.8 inch
Notes

Gamme d'onda: OM, tropicali, 4 OC. La lista delle parti proveniente dagli schemari Scuola Radio Elettra, pag. M46, è errata; in allegato tra gli schemi vi è anche quella corretta da altra fonte.
Wave bands: BC, tropical, 4 SW.

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 169-170)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M45-M46; inoltre: Collezione di Schemi, Scuola Radio Elettra 1953)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
