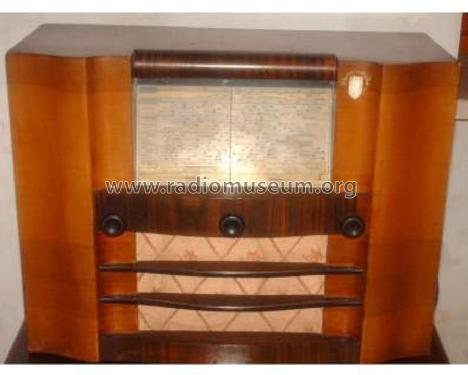

Altair ; Marelli Radiomarelli (ID = 355888) Radio
Marelli Radiomarelli: Altair [Radio] ID = 355888 866x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Altair, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6L6 5X4
Main principle Superheterodyne (common); ZF/IF 450 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-110; 115-125; 125-135; 150-160; 175-190; 210-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Altair - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 400 x 270 mm / 21.7 x 15.7 x 10.6 inch
Notes

Gamme d'onda: lunghe, medie, corte, cortissime.
Potenza d'uscita: 3 watt

Il modello Altair soprammobile utilizza sia la coppia di valvole 6V6-5Y3 sia la coppia 6L6-5X4. Il modello Altair Fono, utilizza lo stesso telaio, con gli stessi comandi e la stessa disposizione dei medesimi. Usa però solo la coppia 6L6-5X4, con una piccola variazione del circuito elettrico. Controllo di tono a tre posizioni.

Price in first year of sale 1'347.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.
