Belform ; Marelli Radiomarelli (ID = 988126) Radio
Marelli Radiomarelli: Belform [Radio] ID = 988126 860x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belform, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner

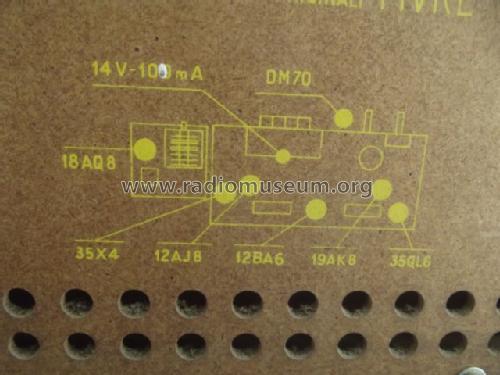

Valves / Tubes 7: 18AQ8 12AJ8 12BA6 19AK8 DM70 35QL6 35X4
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Belform - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 500 x 270 x 270 mm / 19.7 x 10.6 x 10.6 inch
Notes Il ricevitore ha come gamme : 1 x OC 1 x OM 1 x FM ...nella gamma FM con l'utilizzo di un altro commutatore sempre sul frontale si suddivide ulteriormente in TV ch.bassi FM TV ch.alti.
Il giradischi può selezionare 4 velocità 16-33-45-78.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 47.00 €

Model page created by Maurizio Capisani. See "Data change" for further contributors.
