Merak Sopramobile

Merak Sopramobile ; Marelli Radiomarelli (ID = 37799) Radio

Merak Sopramobile ; Marelli Radiomarelli (ID = 206475) Radio
Merak Sopramobile ; Marelli Radiomarelli (ID = 1078195) Radio Merak Sopramobile ; Marelli Radiomarelli (ID = 743432) Radio
Merak Sopramobile ; Marelli Radiomarelli (ID = 1228666) Radio Merak Sopramobile ; Marelli Radiomarelli (ID = 1228667) Radio
Merak Sopramobile ; Marelli Radiomarelli (ID = 1228669) Radio Merak Sopramobile ; Marelli Radiomarelli (ID = 1427918) Radio
Merak Sopramobile ; Marelli Radiomarelli (ID = 1427920) Radio Merak Sopramobile ; Marelli Radiomarelli (ID = 1427921) Radio
Merak Sopramobile ; Marelli Radiomarelli (ID = 1427922) Radio Merak Sopramobile ; Marelli Radiomarelli (ID = 1427923) Radio
Use red slider bar for more.

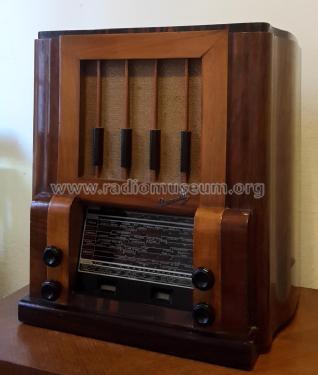

Merak Sopramobile ; Marelli Radiomarelli (ID = 1078195) Radio
Marelli Radiomarelli: Merak Sopramobile [Radio] ID = 1078195 700x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Merak Sopramobile, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Per gentile concessione Giuseppe Forniti

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 450 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Merak Sopramobile - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Meter
Price in first year of sale 1,347.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in La moderna Supereterodina, Ravalico, 1938 (pag. 372)
Literature/Schematics (1) Il Radio Libro, (Ravalico) 5.Edizione 1939

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Marelli (Radiomarelli); Sesto San Giovanni (MI)
Here you find 435 models, 326 with images and 248 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
