Radiobalilla Tipo 54
Use red slider bar for more.

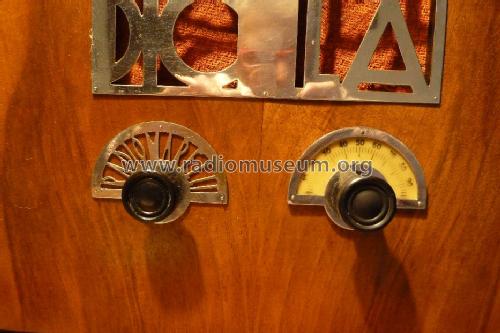

Marelli Radiomarelli: Radiobalilla Tipo 54 [Radio] ID = 124863 633x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1935–1937 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: 6B7 42 80 |
|---|
| Main principle | TRF with diode detector; Reflex |
|---|---|
| Tuned circuits | 2 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-220 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Radiobalilla Tipo 54 - Marelli Radiomarelli; Sesto |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 310 x 340 x 210 mm / 12.2 x 13.4 x 8.3 inch |
| Notes | Ricevitore popolare. On government order produced by a number of different manufacturers (Hawes: Radio Art); |
| Price in first year of sale | 430.00 ITL |
| Source of data | -- Schematic |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
