RD153; Marelli Radiomarelli (ID = 1094282) Radio
Marelli Radiomarelli: RD153 [Radio] ID = 1094282 933x611

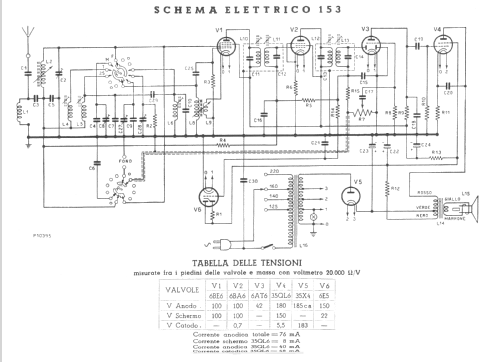

Select picture or schematic to display from thumbnails on the right and click for download.
For model RD153, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AT6 35QL6 6E5GT 35X4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RD153 - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 320 x 230 mm / 18.9 x 12.6 x 9.1 inch
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
