• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1969–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187435

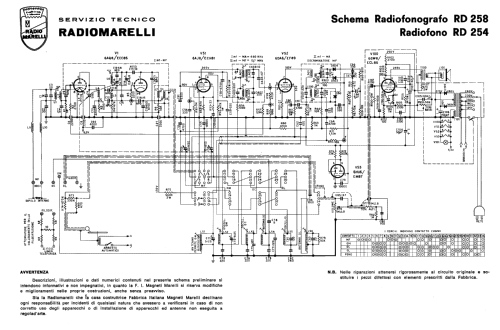

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AQ8 6AJ8 6DA6 6GW8 6HU6

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RD254 - Marelli Radiomarelli; Sesto

• Shape
• Console, Highboy (legs > 50 %).

• Mentioned in
• -- Original prospect or advert (Catalogo Radiomarelli 1969)

• Literature/Schematics (1)
• Catalogo ANIE (1971-72)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
