RD305; Marelli Radiomarelli (ID = 799663) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC71 OC71 OC74 OC74
Main principle Super-Heterodyne (Super in general); ZF/IF 10700/455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.55 W (unknown quality)
from Radiomuseum.org Model: RD305 - Marelli Radiomarelli; Sesto
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 190 x 80 mm / 11 x 7.5 x 3.1 inch
Notes Ricevitore MA-MF a 9 transistori + 5 diodi.
2 gamme d'onda: onde medie e modulazione di frequenza.
Antenna a stilo per MF.
Mobile bicolore in materiale plastica antiurto.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

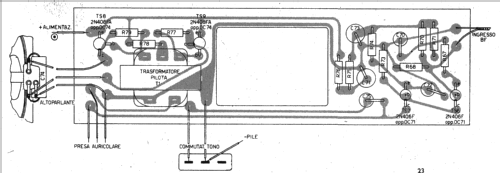

Literature/Schematics (1) -- Schematic (Schemario di Apparecchi a Transistori Vol. 3° R. Rosati)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
