RD315 MF

RD315 MF; Marelli Radiomarelli (ID = 1292349) Radio
Use red slider bar for more.
RD315 MF; Marelli Radiomarelli (ID = 1292349) Radio

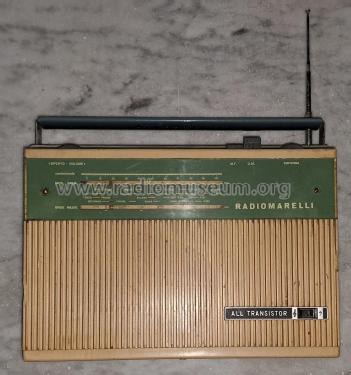

Marelli Radiomarelli: RD315 MF [Radio] ID = 1292349 476x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model RD315 MF, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Radiomarelli RD315. Catalogo Radiomarelli 1965, mod. RML 126 12/64

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: RD315 MF - Marelli Radiomarelli; Sesto
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 200 x 80 mm / 11 x 7.9 x 3.1 inch
Notes

5 diodi. Custodia in similpelle opzionale.

Net weight (2.2 lb = 1 kg) 2.250 kg / 4 lb 15.3 oz (4.956 lb)
Price in first year of sale 32'900.00 ITL
Mentioned in Guida Pratica Transistor Radios
Literature/Schematics (1) -- Original prospect or advert (Catalogo Radiomarelli 1965, mod. RML 126 12/64)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
