Ual Ual II Doppia Onda Tipo A 69

• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106447

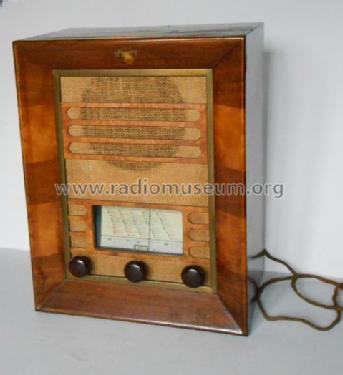

• Picture

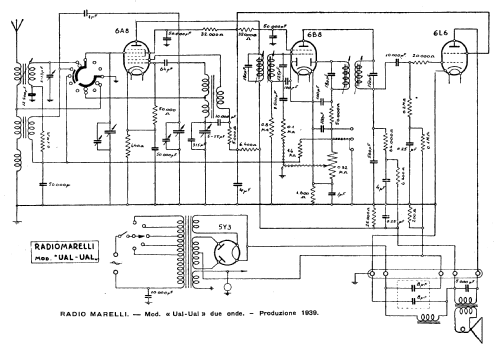

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8 6B8 6L6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 100-110; 115-125; 126-135; 150-160; 175-190; 210-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ual Ual II Doppia Onda Tipo A 69 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Rispetto al "Tipo B", ha andamento verticale.

• Price in first year of sale
• 986.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
